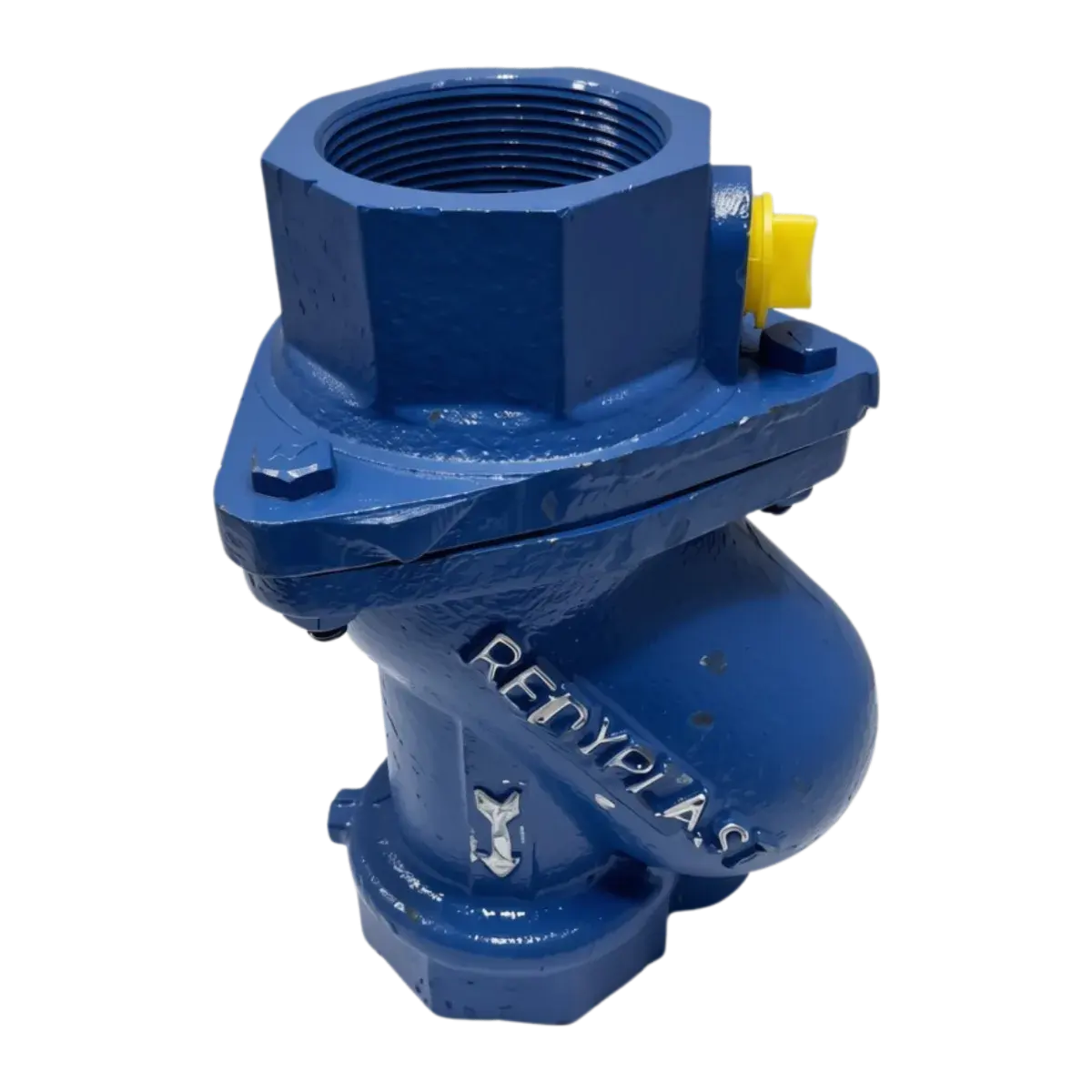

SOCKETED NRV BALL TYPE CI 4"

About this product

ball type socketed CI NRV is a high-quality non return valve designed for secure and leak-proof water flow in irrigation and agricultural pipe line.this is ideal for efficient water flow management and professional-grade installations.it ensure secure waterflow and cost-effective solution for all your piping connection needs.

Key features

• Made from premium-grade material
• heavy duty material
• long-lasting performance
• corrosion resistance
• secure water flow

Where it's used

• Smaller submersible and openwell pump lines
• Delivery runs where a flanged valve would be needlessly heavy
• Replacing a failed check valve without cutting flanges into the line

Benefits

• Ball-type check valve that seats by its own weight and the returning column, so there is no spring to weaken
• Socketed ends thread straight onto standard pipe — no flanges, no gaskets, fewer parts to leak
• Keeps the delivery line primed between runs, so the pump is not started against an empty column
• Cast iron body absorbs the shock of closing without cracking
• Simple enough to open, clean and refit in the field

Installation recommendations

Check the flow direction before threading it in — reversed, it stops the line dead. Clean the threads, tape or seal them, and make the joint with a wrench on the valve body rather than on the adjoining pipe. Keep the valve accessible; a check valve buried behind other pipework is one nobody will ever service. If it starts passing water back, unthread it and check the ball and seat for grit before condemning it.

Downloads

• Technical data sheetPDF ↓View
